Technical parameters:

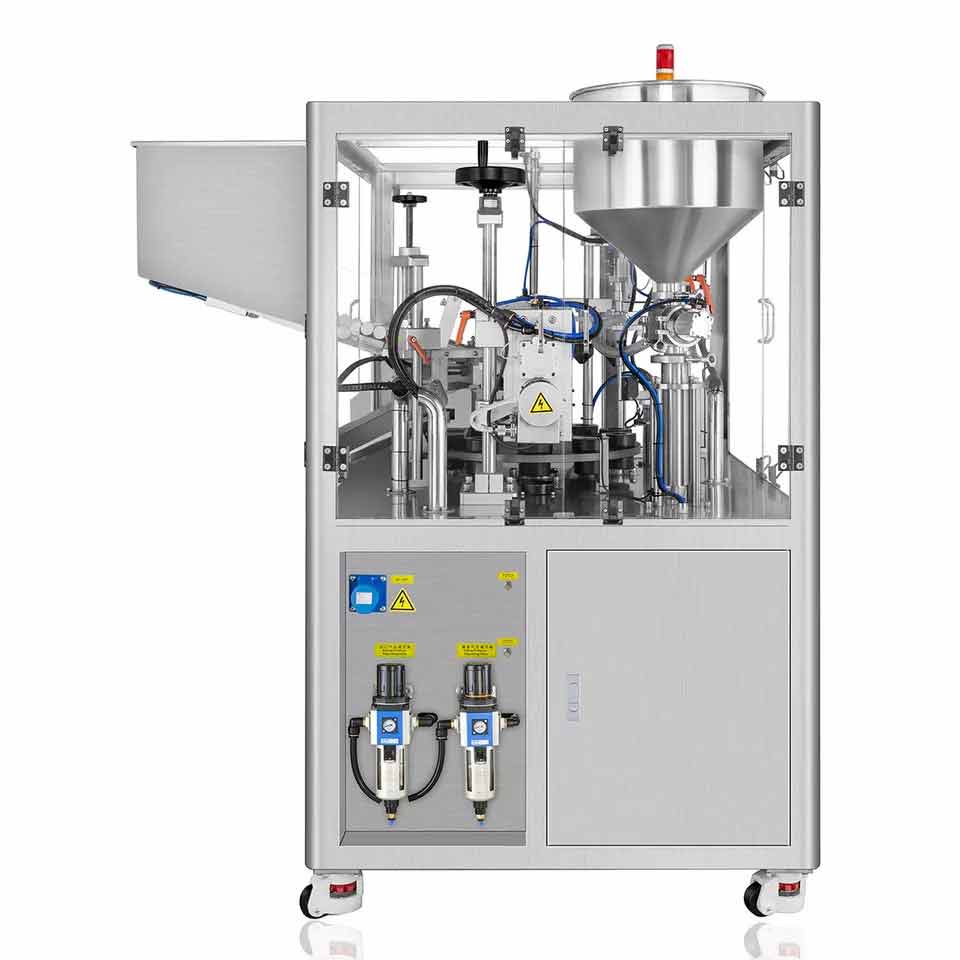

Product name: Semi automatic filling and sealing machine
Power mode: pneumatic

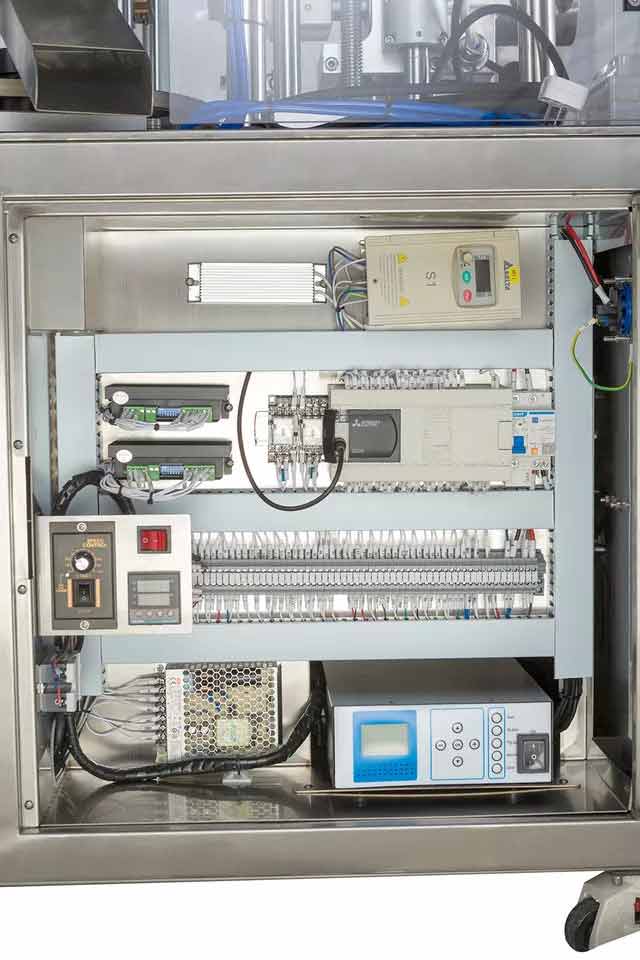

Control system: PLC system
Voltage and power: 220V/110V/2000W
Frequency: 20KHZ
Filling range: A: 6-60ml; B: 10-120ml; C: 25-250ml; D: 50-500ml
Tube length: 50-250mm
Tube diameter: 13-50mm
Filling Accuracy: ± 1%
Filling speed: 18-28tubes/min
Machine weight: 320kg

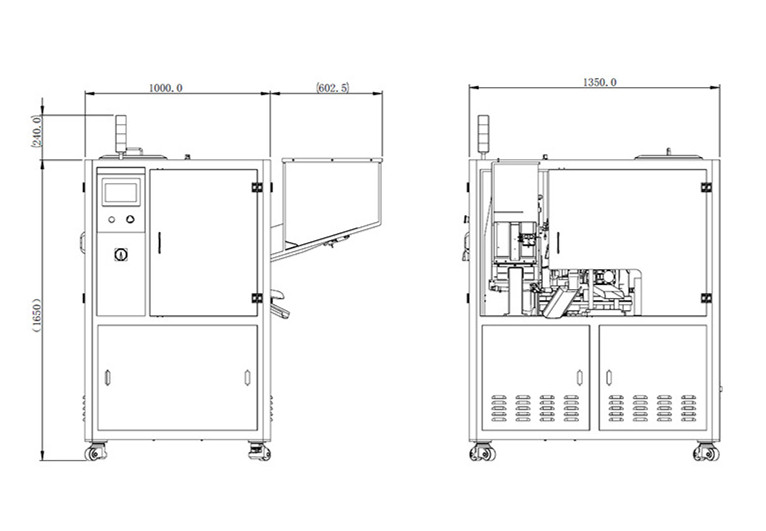

Machine size: 1300 * 900 * 1550mm
This tube sealer is applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.
Extensional organization of the machine is made of aluminium alloy and stainless steel.
Application of Automatic Ultrasonic Plastic Soft Tube Filling And Tail Sealing machine:Mainly Packaging the liquid or paste in small sachet at high speed, such as shampoo, lotion, hand washing, liquid soap,liquid flavors, juice, oil, jam, honey for the tubes filing and sealing machine etc.
Introductions:
1. Tube sealing machinery is suitable for toothpaste, cosmetics, medicines, food industrial supply etc.
2. With horizontal aluminum alloy structure, stainless steel package, environment friendly and sanitation.
3. With independent platform, vertical /horizontal adjustable worktable, worktable, easy operation stable performance ,high efficiency.
Manual Tube sealing machine has many aliases：
1.Toothpaste sealing machine 2.Cosmetic tail sealing machine 3.Tube sealing machine, 4.Semi automatic tube filling sealing machine,etc
1. Easy to operate and maintain.

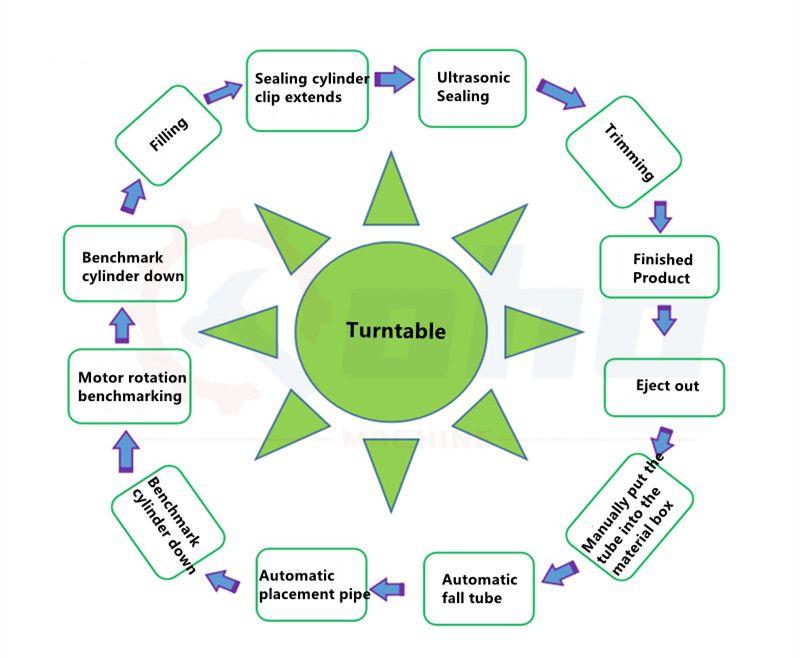

2. Automatic positioning, filling, welding, cutting and trimming, printing code in one time.
3. Stainless steel machine body, strong and beautiful looks,
4. Sealing mould can be customized according to customer requirements. Can seal many size of tubes.
5. Ultrasonic Sealing Machine power source for the pneumatic, working steady, not easy to damage, customers can rest assured use.
6. Ultrasonic frequency can meet international standard, no harmful to human being or environment
7. Can be work in time, no need wait the heat time .
Advantages：
1.It adopts ultrasonic sealing machine , good for difference products, such as food, medical, cosmetic products. It will not hurting the products.
2. Overload protection, phase separation protection, power-fail protection.
3. Large ultrasonic output power to ensure the sealing quality of various tube size and material.
4. With tube end trimming
5. Easy change working mold for difference tube diameter
6. Adjustable tube length
7. Machine include a gear pump filler( Good filling precision+- 1)
1. If there is a machine problem within 1 year of delivery,we can provide free spare parts replacement
2. Support returns within 2 days after payment,and cannot be returned after delivery.
3. English version user guide manuel and video
4. Exclusive after sale customer service
5. Before shipment, the machines have been successfully tested.
6. Support Certifications,CE certification,UL certification,ISO9000
7. Respond Rate 100%,During working hours,the response time is less than 10 minutes.
