FillinMachine 80 Automatic Pharmaceutical Pill Tablet Capsule Packaging Blister Packaging Machine

Technical parameters:

Product name: Blister Packaging machine

Punching times: 10-33 times/min

Production capacity: 2400 plates/hour

Max. Forming area&Depth: 80x110x13mm

Standard travel range: 20-80mm (can be designed according to customer requirements)

Standard section size: 80 * 57mm (can be designed according to customer requirements)

Total power supply/Main motor: 220V/110V/50Hz; 3.2Kw/750W

PVC hard film: 0.15-0.5 * 110mm

PTP Aluminum film: 0.02-0.035 * 110mm

Dialysis Paper: 50-100g * 110mm

Mold cooling: Tap water or Recycling water

Machine weight: 450kg

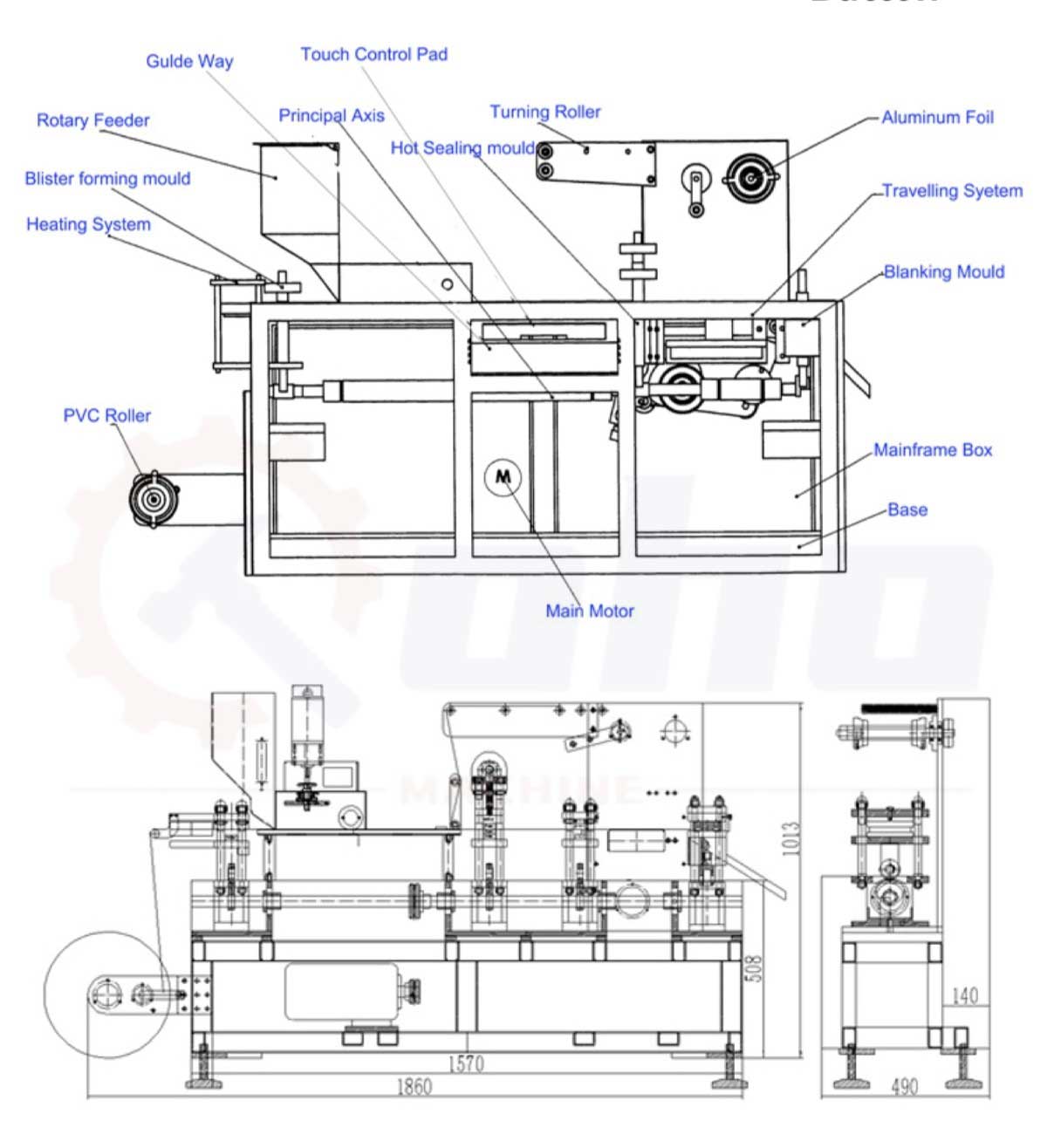

Machine size: 1600x600x1100mm

Noise:<75dBA

inquiry

Tags:

Blister Packaging Machine, Capsule packaging machine,

Description

banner

Automatic Blister Packaging Machine applications:

This machine is a Blister Packaging Machine which new innovating designed by our company, and its function can reach to the leading level of China. This new Min-automatic Blister packing machine wildly used in small pharmacy factory, dosage room of hospital research institute of pharmaceutical factory, health products factory, food products factory and hardware factory for packing capsule, troche, icing, milk tablet, candy, little hardware etc.

Blister Packaging Machine has many aliases：

1. Blister Packaging Machine 2. blister paper packaging machine for medical device 3. liquid blister packaging machine manufacturer 4. blister packaging machine with high quality 5. Capsule packaging machine 6. candy packing machine,etc

细节1

Specification

item	value
Type	Packaging machine
Brand Name	FillinMachine
Product name	Automatic Multi-function blister packaging machine
Keywords	blister packaging machine
Punch frequency	10-33times/min
Production capacity	2400plates/hour
Max. Forming area & Depth	80x110x13mm
PVC hard Film	0.15-0.5*110mm
PTP Aluminum film	0.02-0.035*110mm
Dialysis Paper	50-100g*110mm
After-sales Service Provided	Video technical support, Online support
Applicable industries	Food, chemical, catering, daily chemical, tobacco and alcohol

Products Description

Advantage：

1、It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.2、Imported controlling system is adopted; also it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.

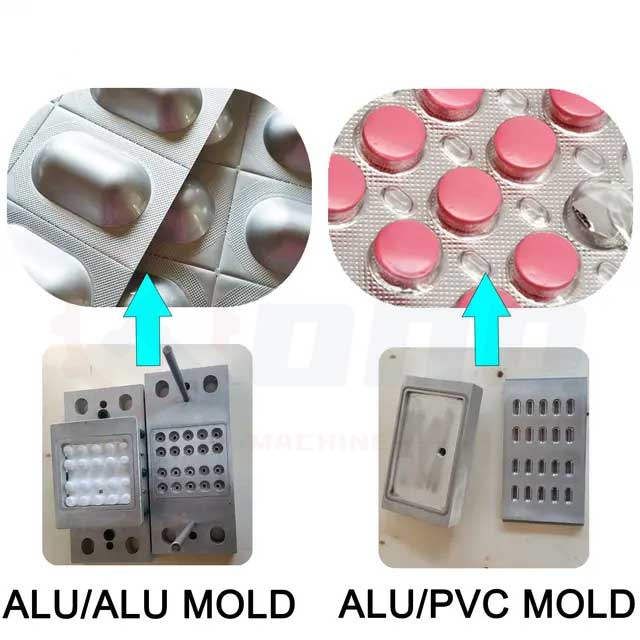

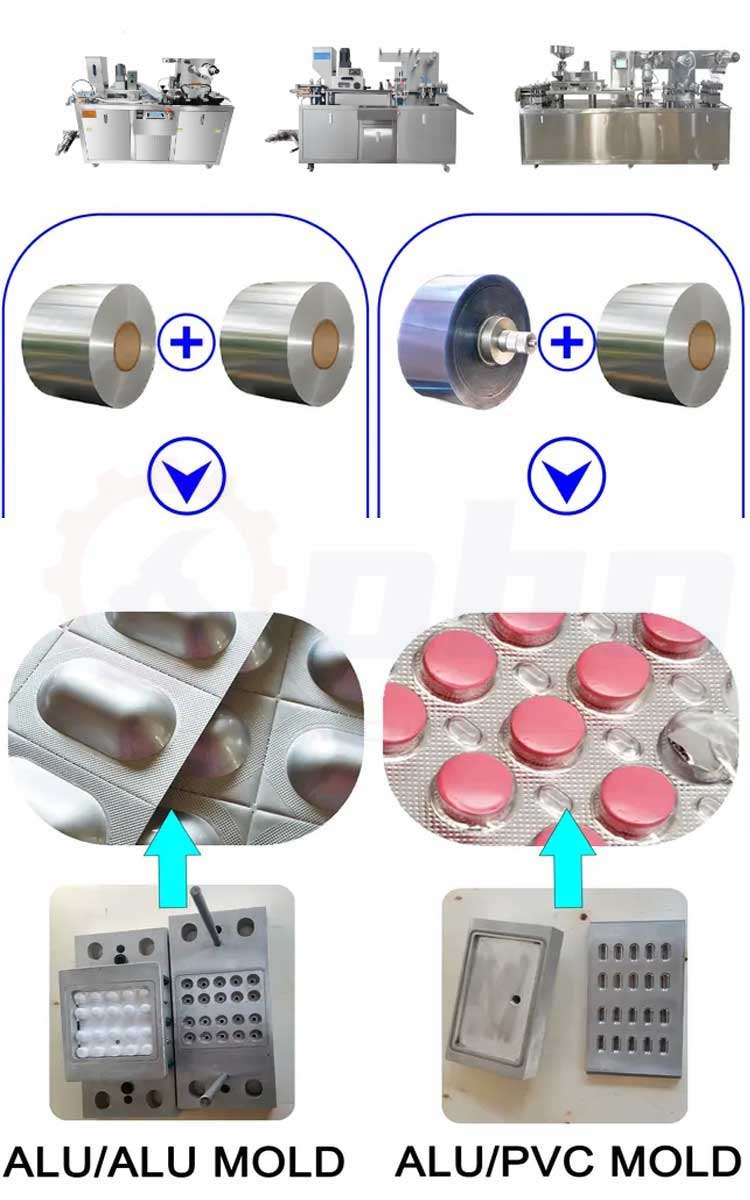

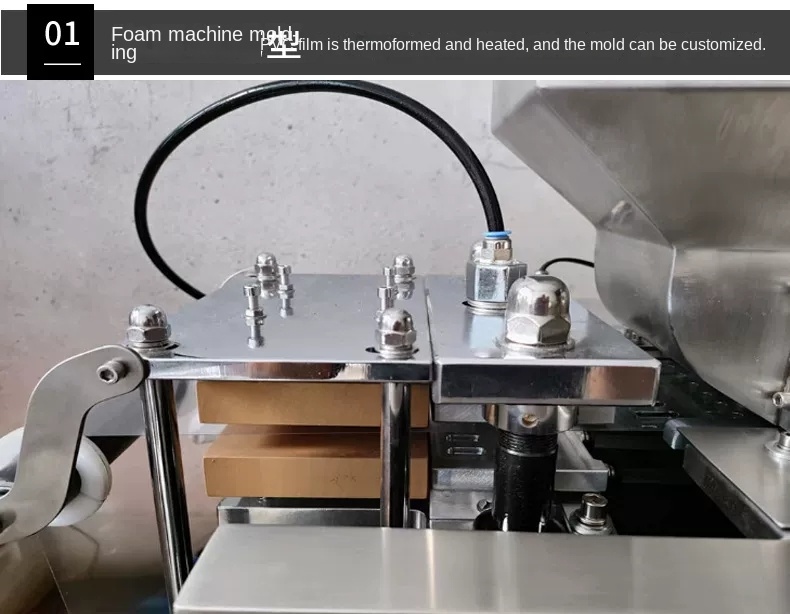

3、The entire machine adopts segmented combination: PVC forming, feeding, and heat sealing are in one section, while tropical aluminum cold forming, heat sealing, and punching are in one section for split packaging.

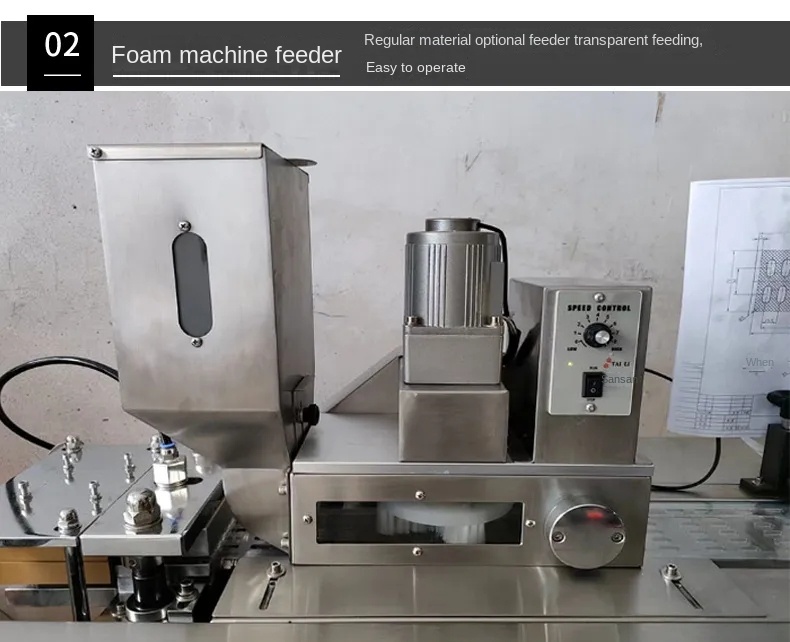

4、This machine adopts a photoelectric control system, with automatic feeding devices for PVC, PTP, and hard aluminum packaging, and automatic punching and cutting devices for waste edges, ensuring synchronous stability of multiple workstations over long distances.
5、This machine can be additionally equipped with a photoelectric detection and correction device, equipped with servo motor traction, graphic and text printing packaging, and optimizing the grade of packaging materials.6、This machine is suitable for sealed packaging of capsules, tablets, sugar coated, capsules, injections, shaped products, as well as medical devices, light food products, and electronic components.
