FillinMachine High accuracy corrosion resistant Magnetic pump liquid bottles filling machine

Technical parameters:

Name: Magnetic pump filling machine

Voltage and power: AC220V/110V/80W

Number of filling heads: 1

Filling head diameter: 5MM

Pump type: Magnetic pump filling machine

Pump speed: 3L/min

Filling accuracy: ± 1%

Optimal filling range: 2ml-300ml (viscous 2-30ml)

Filling height: 1-40cm (adjustable)

Applicable materials:

Liquids, visible floating liquids, Corrosive materials

Machine material: stainless steel

Machine weight: 5.5KG

Machine size: 36 * 30 * 20CM

inquiry

Tags:

Magnetic pump filling machine,

Description

Small Magnetic pump filling machine applications:

Small Magnetic pump filling machine

The machine adopts imported dc motor magnetic pump, long service life, high temperature resistant from 1 to140℃, all 316 stainless steel pump head, corrosion resistance, for corrosive medium and organic solvent can be different filling liquid products.

Applicable objects: Fruit juice drinks, alcoholic beverages, mineral water, purified water, oils, hair care products, skin care products, cosmetics, detergents, perfumes, essences, toilet water, Fuel treasure, gasoline additives, organic solvents,Applicable industries: catering, food, daily cosmetics

Specification

item	value
Type	Filling Machine
Brand Name	FillinMachine
Product name	Small Magnetic pump filling machine
Keywords	Corrosion resistance Filling Machine
Filling volume	more than 2ML
Capacity	30-50 bottles/min
Certification	CE ISO900
Material	Stainless Steel 201/304/316

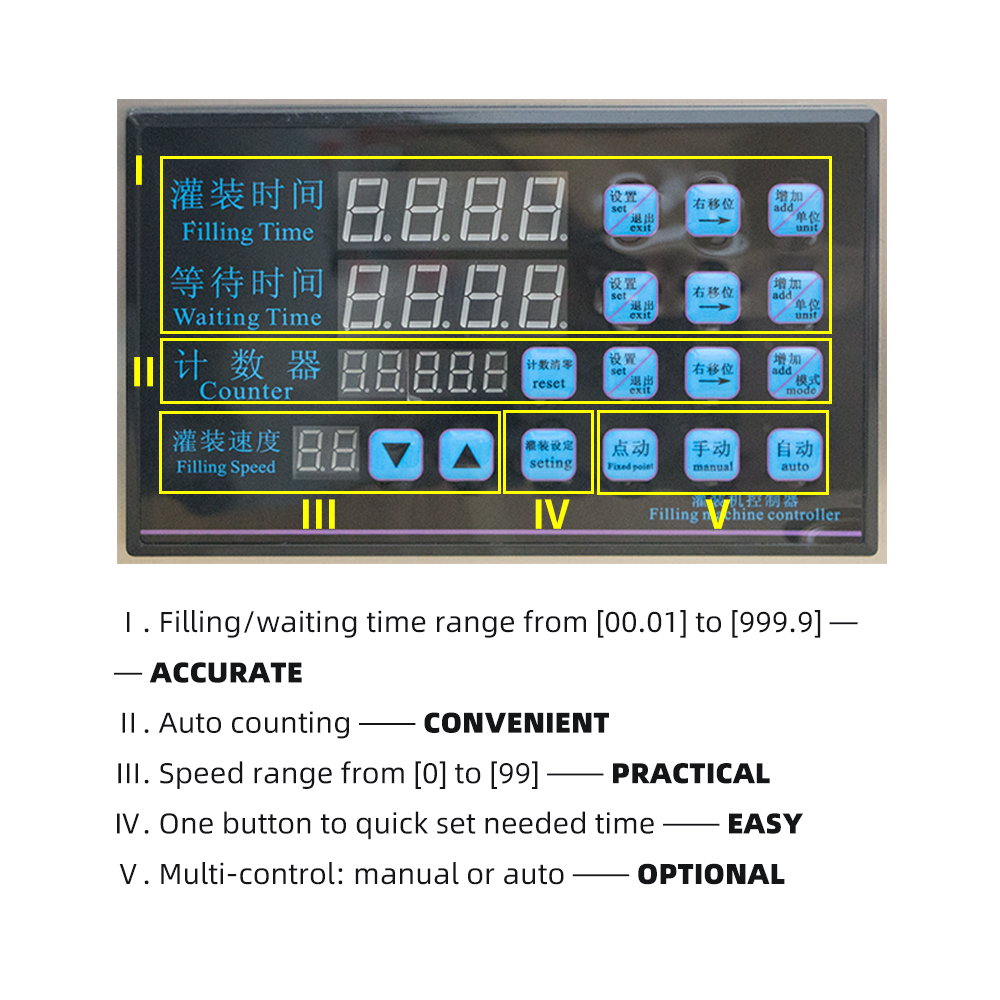

Control	Touch Screen Control+Foot Pedle
After-sales Service Provided	Video technical support, Online support
Filling head	Support Customization
Applicable industries	Food, chemical, catering, daily chemical, tobacco and alcohol

Products Description

Small Magnetic pump filling machine

This is candle filling machine,suitable for soy wax,paraffin wax,jelly wax, hair removal wax, furniture wax 1.The pump has function of heating which can prevent from blocking of the pump. 2.Filling for aluminium cup,glass cup,plastic cup, bottles all ok 3.The machine is suitable for small workshops and processing plants. 4.The machine packing can be moved and manually. It is very convenient to fill the wax without moving the wax container.

Our services

1. If there is a machine problem within 1 year of delivery,we can provide free spare parts replacement

2. Support returns within 2 days after payment,and cannot be returned after delivery.

3. English version user guide manuel and video

4. Exclusive after sale customer service

5. Before shipment, the machines have been successfully tested.

6. Support Certifications,CE certification,UL certification,ISO9000

7. Respond Rate 100%,During working hours,the response time is less than 10 minutes.
