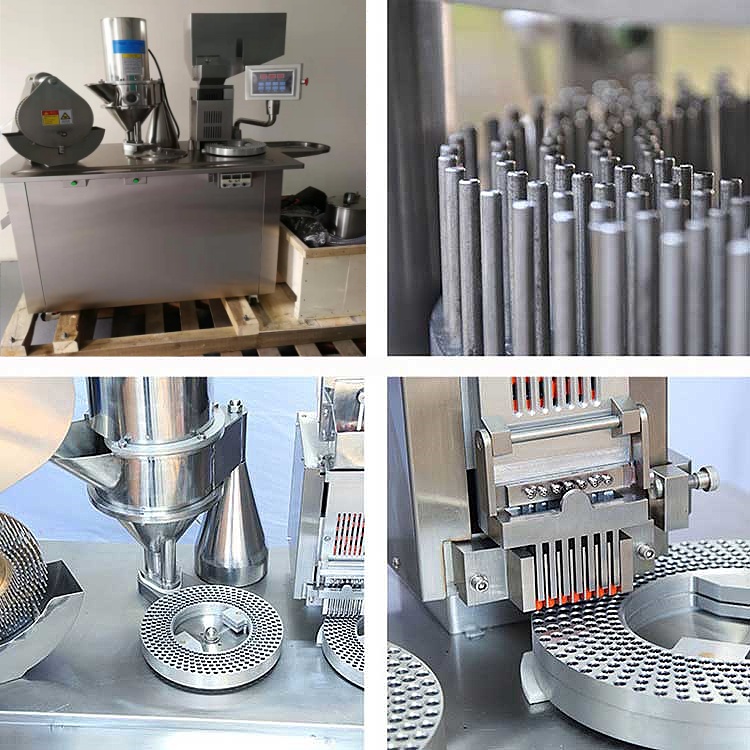

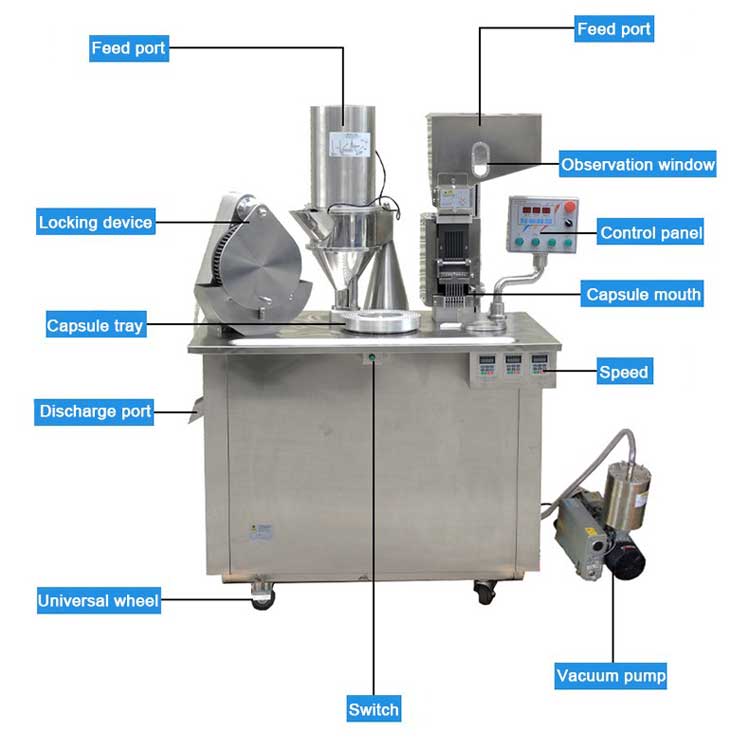

FillinMachine Semi-Automatic Capsule Filling Machine

Technical parameters:

Product Name: Semi-Automatic Capsule Filling Machine

Power mode: pneumatic

Machine functions:

filling+sealing

Control system: PLC intelligent system

Voltage and power: 380V/2.KW

Vacuum Pump: Evacuating Rate, 40m 3 /H

Filling accuracy: 99%

Air pressure: 0.4-0.8Mpa

Best filling range: #000-#5

Filling speed: 20000-25000 PCS/hour

Machine material:

304/316 stainless steel (customizable)

Filled medicine type: Not adhensive or wet powders, and small granules

Total weight: 330KG

Machine size: 1750 * 1550 * 1400mm

Capsule Filling Machine applications:

Semi-Automatic Capsule Filling Machine Introduction:

The capsule filling machine has a fast filling speed and small size difference. This machine integrates the powder filling capsule shell arrangement, capsule cap arrangement, and capsule set arrangement, making it compact and convenient. Suitable for small to medium-sized pharmaceutical factories, health product factories, hospitals, and clinics for small to medium batch production, such as using 2-3 machines simultaneously, and also suitable for large-scale production.

Usage:
It applies to empty hard capsule filling of powder, granular medicines and healthy products.

Specification
item
value
Type
Capsule Filling Machine
Brand Name
FillinMachine
Product name
Semi-Automatic Capsule Filling Machine
Keywords
Capsule Filling Machine
Optimal filling range
000#~ 4#capsule
Air pressure
0.03m 3 /min, 0.7MPa
Capacity
20000-25000pcs/hour
Control
PLC Control
Certification
CE ISO9000
Filling materials
Not adhensive or wet powders, and small granules
After-sales Service Provided
Video technical support, Online support
Applicable industries
Food, pharmacy,chemical, catering, daily chemical
Products Description

Features:
semi-automatic capsule filling machine for small and medium sized pharmaceutical companies, health care products factory, hospital preparation room carefully crafted a set of electricity, gas as one of the new semi-automatic capsule filling machine, novel structure, attractive appearance, top body and work, stainless steel, the product meets the GMP requirements;machine with programmed control system, touch panel operation (V-type), frequency conversion stepless adjustment of the joint control of pneumatic and electronic automatic counting device can automatically complete the capsule of the U-turn on spaces,
separation (cap body torn off), drug filling, locking etc, and filling dose accuracy, easy to operate. Applicable to powder,granular medicines and healthy products in capsule filling!Is the ideal semi-automatic capsule filling machine

Summary:

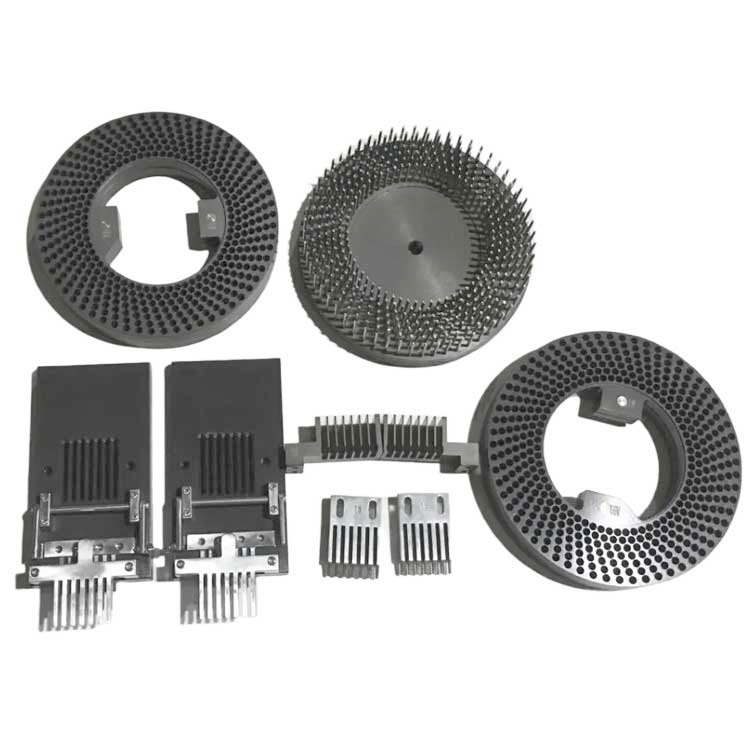

1.Matching different size formats to fill 000#~ 4#capsule;

2.One size capsule matched one set format;

3.It can finish the whole filling capsule process, adjusted the capsule of cap and bottom, open the cap and bottom,filling powder, get rid of unqualified capsules, close the capsule, finished capsule;

4.Satisfied GMP standard, the powder will not be pollution, save powder materials than automatic capsule filling machine. Easy to be clean;

5.Low wear and tear. The structure is new, improved design;

6.Can filling all kinds of Chinese and foreign medicine powder, and granules;

7.Frequency control, the operation is safety and simply;

Automatic vial filling capping machine has many aliases:

1.semi-automatic capsule filling machine;2.capsule filling liquid powder pellet machine;3.automatic medicine capsules filling machines;4.gelatin capsule making capsule filling machine;5.medicine capsul filling machine;etc

Our services

1. If there is a machine problem within 1 year of delivery,we can provide free spare parts replacement

2. Support returns within 2 days after payment,and cannot be returned after delivery.

3. English version user guide manuel and video

4. Exclusive after sale customer service

5. Before shipment, the machines have been successfully tested.

6. Support Certifications,CE certification,UL certification,ISO9000

7. Respond Rate 100%,During working hours,the response time is less than 10 minutes.
